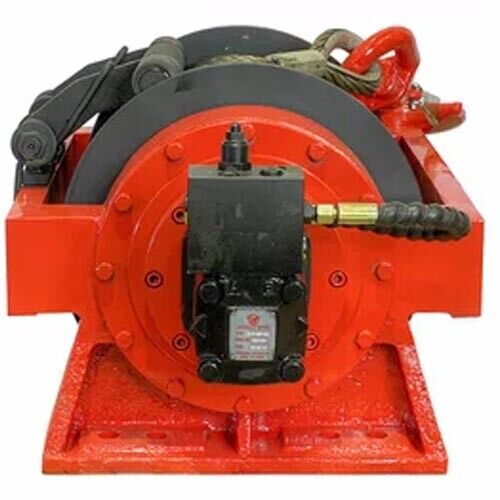

Hydraulic Winch - 22,000 LBS Capacity - High Torque Motor - 2 Stage Gearing
Hydraulic Winch - 22,000 LBS Capacity - High Torque Motor - 2 Stage Gearing
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT10T
Condition: New
Description: Hydraulic Winch - 22,000 LBS Capacity - High Torque Motor - 2 Stage Gearing
Features: The complete Package. A superb heavy duty winch supplied complete with Balance Valve, cable and Heavy Duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.
PLEASE NOTE: We offer this winch in different drum sizes, air or manual clutches, and various other line pull capacities. Please inquire toll free for assistance
Description & Specification:
Includes:
0.6 inch x 157 ft Steel Cable
Rope Tensioner
Hook
Balance valve
Description & Specification:
Rugged High Torque Motor
Hydraulic Multiple Disc Brake
2 Stage Planetary Gearing
Complete with Balance Valve
Air Operated Freespool
Rugged and compact for Long Life
Heavy Duty Steel cast Frame
Rope and Tensioner as Standard
Rated Line Pull: 22,000 lbs (10,00 kg)
Pressure: 160 BAR
Motor: Hydraulic Dis 100 mL/r
Gearing: 20:1
Drum Size (Dia x L): 5.4" x 12.4" L
Cable (Dia x L): 0.6" x 157' L
Mounting Pattern: 17" x 2.5" x 7.6"
Overall Dimensions (L x W x H): 32.7" x 15.4" x 12.6"
Weight: 359 lbs
|
Layer of wire rope |
Rated line pull lbs (kgs) |
|
1 |
22,046 (10,000) |
|
2 |
17,226 (7,814) |
|
3 |
15,130 (6,863) |
|
4 |
13,487 (6,118) |
|
5 |
12,167 (5,519) |
|
Line Pull lbs (kgs) |
Line Speed |
|
12,167 (5,519) |
33.7 (10.3) |
|
13,487 (6,118) |
30.5 (9.3) |
|
15,130 (6,863) |
27.2 (8.3) |
|
17,226 (7,814) |
23.9 (7.3) |
|
22,046 (10,000) |
20.6 (6.3) |
