Pacific Tundra

Hydraulic Winch - 29,700 LBS Cap - 13.5 Tons - Air & Manual Clutch - Commercial

Hydraulic Winch - 29,700 LBS Cap - 13.5 Tons - Air & Manual Clutch - Commercial

Regular price $10,446.20
Regular price Sale price $10,446.20
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PT135HW

Condition: New

Description: Hydraulic Winch - 29,700 LBS Cap - 13.5 Tons - Air & Manual Clutch - Commercial

Features: Fully float heavy duty planetary gearing - Multi-disc friction brake - High torque industrial motor - Air and Manual clutch operation - Heavy duty rope tensioner - Minimum 10:1 rope / drum ratio - Balance valve.



PLEASE NOTE: We offer this winch in different drum sizes, air or manual clutches, and various other line pull capacities. Please inquire toll free for assistance



Description & Specification:

Rated Torque: 12,500 LBF-FT (17,000 Nm)
Hydraulic Motor: Sauer Danfoss OMS 200
Free Spooling Clutch: Pneumatic
Pneumatic Clutch Pressure: 0.4 ~ 0.8 MPa
Air Rope Tensioner: Standard
Industrial Gear Oil: 220
Oil Capacity: 0.2 Gallon (0.8 Liter)
Wire Rop Capacity: 160 Ft (50m)
Hydraulic Operating Pressure: 2,465 PSI (17 MPa)
Rated Line Pull: 29,700 Lbs (13500 kg)
Working Speed (bottom layer): 20,500 lbs (7.5m/min)
Max Flow: 110
Max Pressure Mpa: 17

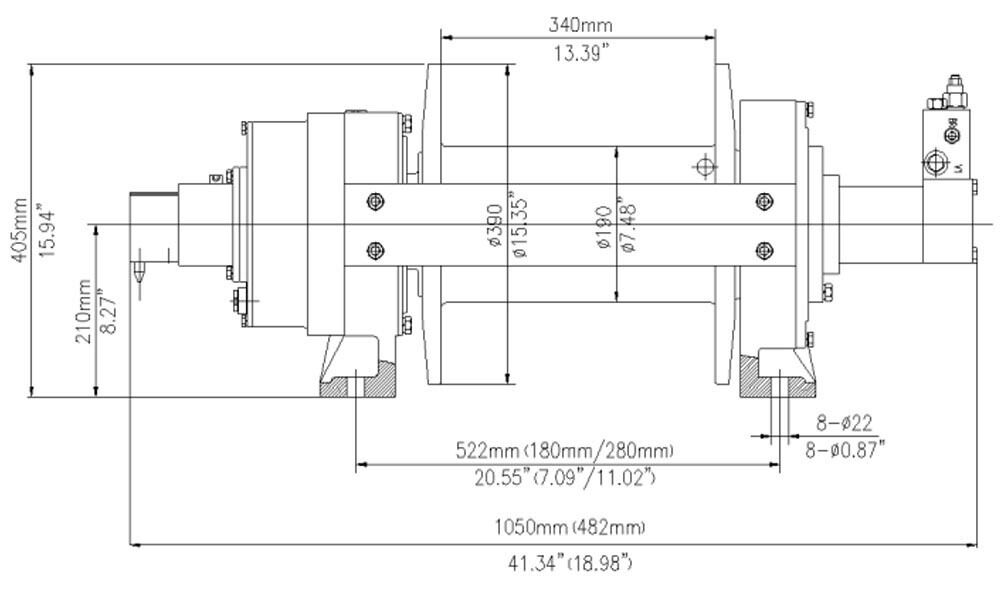

Drum Size Diameter x L: 7.48" × 13.39" (400 x 340 mm)
Cable Diameter x L: 0.71" × 160 FT (18 mm × 50 m)
Mounting Bolt Pattern: 20.55" × 7.09/11.02" (522 mm × 180/280 mm)
Overall Dimensions (L x W x H): 41.34" × 25.20" × 15.94" (1050mm × 640mm × 405mm)
Gross Weight: 597 Lbs
