Pacific Tundra
Hydraulic Winch - 33,000 LBS Cap - 15 Tons - Air & Manual Clutch - Commercial
Hydraulic Winch - 33,000 LBS Cap - 15 Tons - Air & Manual Clutch - Commercial
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT155HW
Condition: New
Description: Hydraulic Winch - 33,000 LBS Capacity - 15 Tons - Air & Manual Clutch - Commercial
Features: Fully float heavy duty planetary gearing - Multi-disc friction brake - High torque industrial motor - Air and Manual clutch operation - Heavy duty rope tensioner - Minimum 10:1 rope / drum ratio - Balance valve.
PLEASE NOTE: We offer this winch in different drum sizes, air or manual clutches, and various other line pull capacities. Please inquire toll free for assistance
Description & Specification:
Rated Torque: 11000 LBF-FT[15000 Nm]
Hydraulic Motor: Sauer Danfoss OMS 245
Free Spooling Clutch: Pneumatic
Pneumatic Clutch Pressure: 0.4 ~ 0.8 MPa
Air Rope Tensioner: Standard
Oil: Industrial Gear Oil 220
Oil Capacity: 0.2 Gallon (0.8 Liter)
Wire Rope Capacity: 160 Ft (50m)
Hydraulic Operating Pressure: 2,320 PSI (16 MPa)
Rated Line Pull: 33,000 LBS
Working Speed (bottom layer): 6m/min

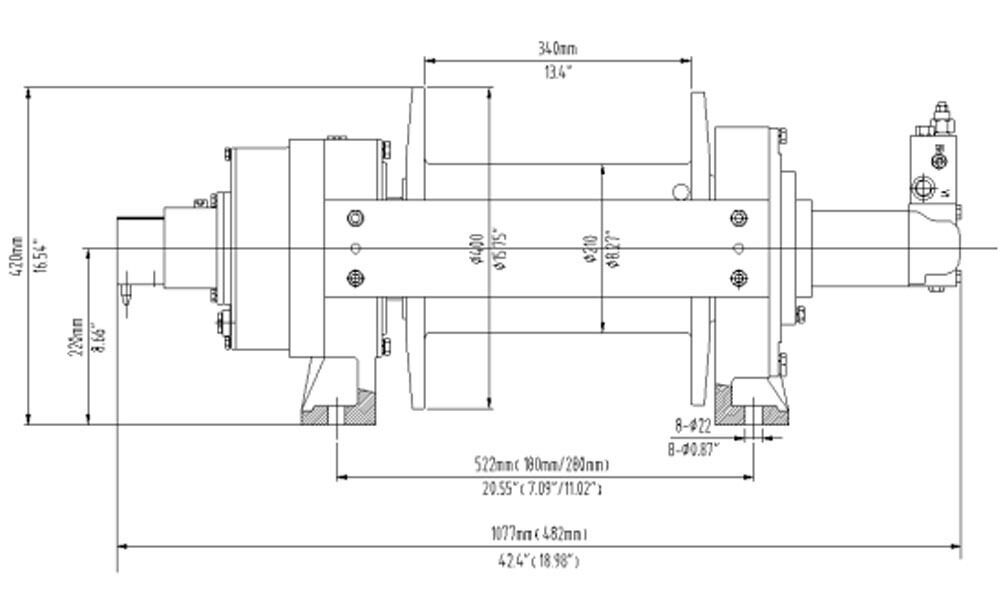

Drum Size Diameter x L: 8.27 " × 13.4 " (210mm × 340mm)
Cable Dia x L: 0.87" × 160 FT (22 mm × 50 m)
Mounting Bolt Pattern: 20.55" × 7.09/11.02" (522 mm ×
180/280 mm)
Overall Dimensions (L x W x H): 42.4" × 25.20" ×
16.54" (1077mm × 640mm × 420mm)
Weight: 705 Lbs (320 kg)
