Hydraulic Winch for FORD EXPLORER - 12,000 lbs Cap - Waterproof - Reversible

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PTMM34KIT12FE

Condition: New

PLEASE NOTE: We offer this winch in different drum sizes, air or manual clutches, and various other line pull capacities - Please inquire

Description & Specification:

Mounts to front or back of vehicle

Can be used as a permanent or detachable system

Unlike battery operated winches, this winch utilizes the power steering system. This allows the winch to be used continuously without draining the battery.

Commercial/Industrial Duty - This winch is element proof, corrosion, and water resistant

Capacity (lbs): 12,000

Speed: 2

Freespoiling: Yes

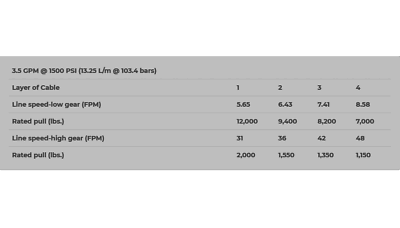

Minimum Power Steering Requirement: 3.5 GPM @ 1,500 PSI (13.25 L/m @ 103.4 bars)

Mechanical Lock System: Yes

Ductile Iron Body: Yes

Stainless Steel Tie Bars: Yes

Fasteners: Yes

Reversible: Yes - Mounts on 3 sides

Mount Location: Front or Rear

Cable Material: Galvanized Steel Aircraft Cable

Cable Length (ft): 100' (30.5 m)

Cable Diameter (in): 3/8" (9.53 mm)

Gear Train: Planetary

Gear Ratio: 6:1

Motor: 19.5 cu in

Drum Size (in): 2.5" x 9" (63.5 mm x 228.6 mm)

Bolt Pattern (in): 4.5" x 10" (114.3mm x 254 mm)

Winch Dimensions (L x W x H): 15" x 28" x 28"

Weight (lbs): 98

Warranty: 5 Years

Made in the USA
