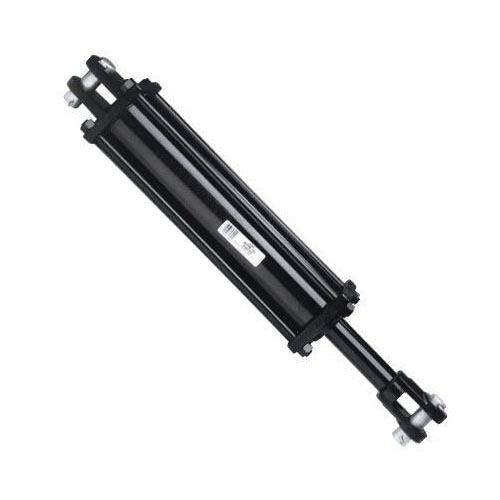

Industrial HYDRAULIC CYLINDER - 3000 PSI - 24" Stroke - Commercial Industrial

Description & Specifications:

• Commercial/Residential Heavy Duty 3,000 PSI, 24" Stroke, 4" Bore Hydraulic Cylinder

• Heavy duty design recommended for agricultural, commercial and industrial applications

• Rated for 3,000 PSI continuous working pressure

• Designed to withstand shock loads of up to 6000 PSI

• Durable ductile iron cast components

• 90 durometer o-ring seals with anti-extrusion rings for positive sealing throughout the cylinder

• High-tensile steel shaft is precision ground, polished and hard chrome plated

• This cylinder can be single or double acting - attach one port for single acting and both ports for double acting

• Maximum PSI: 3,000

• Store: 24"

• Bore: 4"

• Closed Pin Center: 34.25"

• Shaft Diameter: 1.75"

• Ship Weight: 74 Lbs

• 2 Year Warranty (Includes Parts & Labor)

• Extended Warranties are available for this unit - our extended warranties cover this unit an additional 1 & 2 years over and above the included warranty.  We offer accidental damage and replacement plan warranties on this unit (please inquire)
