Inline & Shallow Well Jet Pump System - 900 GPH - 120V - 1" - Booster & Tankless

Model Number: PT827

Condition: New

Description & Specification:

Used in applications where water pressure is low

Perfect for increasing and maintaining municipal water pressure

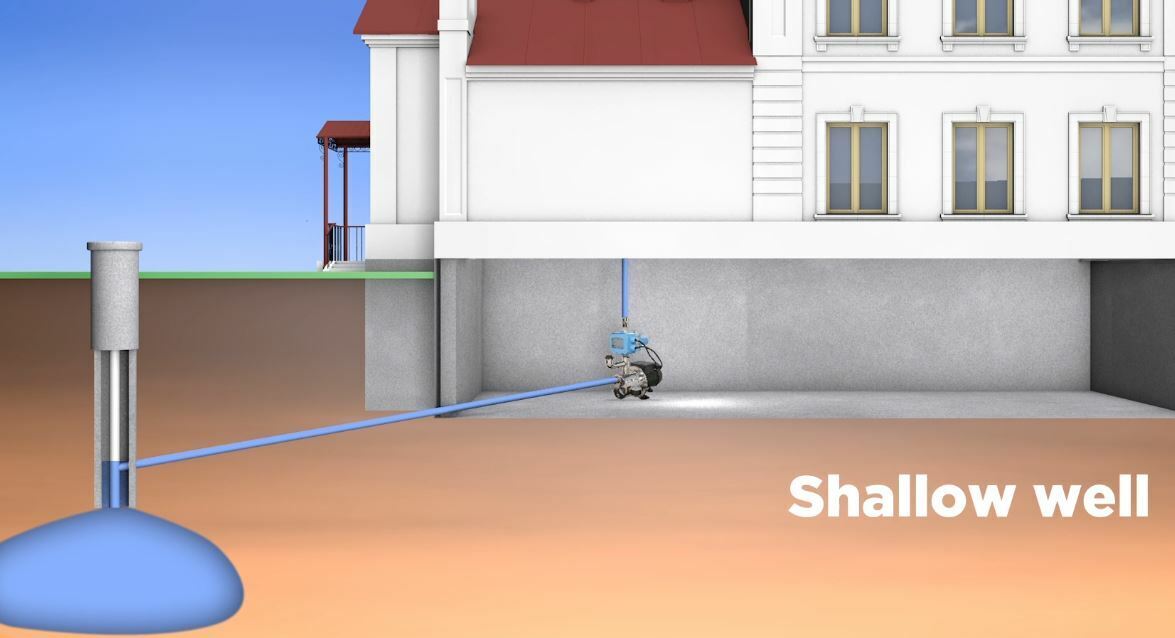

Alternatively can be dual purposed as a tankless shallow well jet pump.

Requires NO Pressure Switch or Tank

User-friendly installation - Requires no hardwiring

Power Source: Electric

Volts: 120

Phase: Single

HP: 3/4

GPM: 16.4

GPH: 900

PSI: 70

Maximum Amps: 15 Start Up - 7.5 Operating

Watts: 1,725 Start Up - 828 Operating

Hertz: 60 Hz

Suction Head (ft): 25

Total Head (ft): 150

Inlet Diameter (in): 1"

Outlet Diameter (in): 1"

Capacity at 30 PSI @ 5ft: 900 GPH

Capacity at 30 PSI @ 10ft: 749 GPH

Capacity at 30 PSI @ 15ft: 638 GPH

Capacity at 30 PSI @ 20ft: 555 GPH

Capacity at 30 PSI @ 25ft: 472 GPH

Motor Type: TEFC

Power Cord Length (ft): 10

Self-Priming: No

Body Material: Stainless Steel

Impeller Material: Polymer

Requires NO pressure switch

Requires NO pressure tank

Please verify that the incoming pressure does not exceed 20 PSI - If pressure exceeds 20 PSI, a pressure reducer must be installed use this system

Dimensions (L x W x H): 16" x 10" x 18"

Weight (lbs): 20
