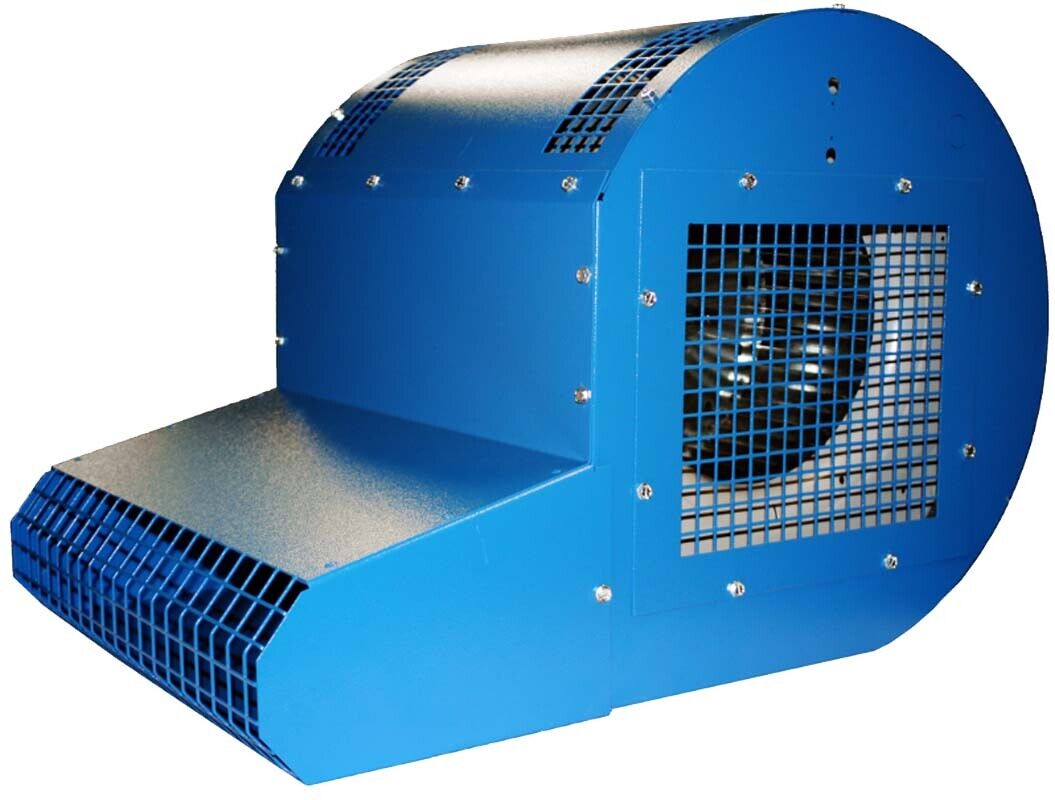

Loading Dock FAN - 3200 CFM - 230/460V - 3ph - 3/4 HP - Wall Mount - 60 ft Throw
Loading Dock FAN - 3200 CFM - 230/460V - 3ph - 3/4 HP - Wall Mount - 60 ft Throw
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PTWGB1922672
Condition: New
Description: Truck Dock FAN - 3,200 CFM - 230/460 Volts - 3 Phase - 3/4 HP - Wall Mount - 60 ft Throw

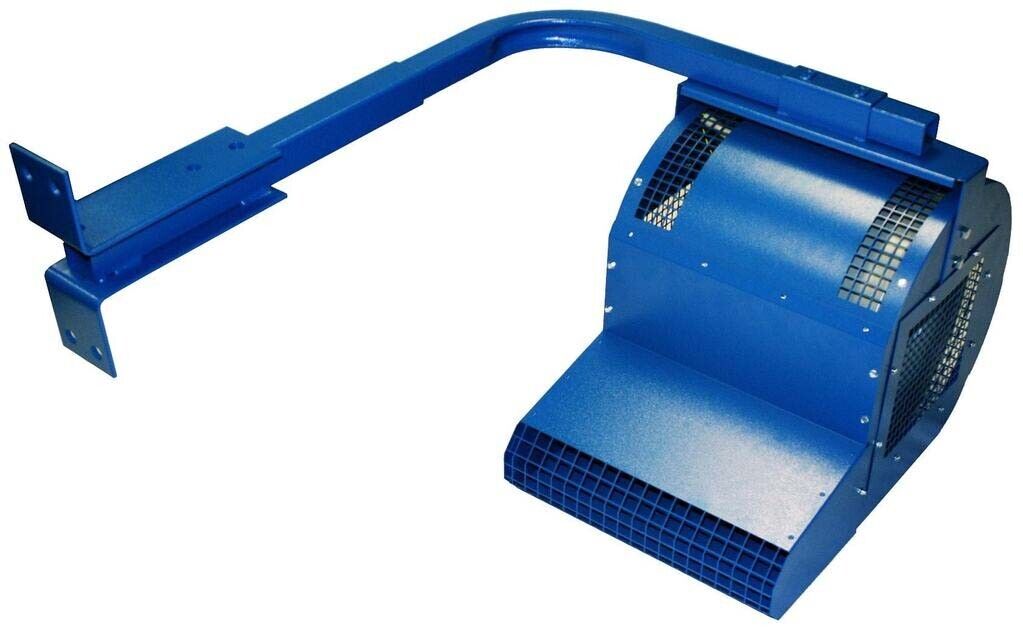

Features: Designed to ventilate docked trailers/truck - Industrial design can withstand high impact collisions - Mounts at least 7 ft off the floor - Cools truck efficiently and cost effectively - Easy to maintain - Utilizes only 6" of door space - Mounts with the included L arm mount and provides unobstructed access in and out of the truck - Alternatively mounts with the included wall bracket
Please Note: This unit is built-to-order and will require 7 to 15 business days to manufacture and ship
Description & Specification:
Application: Loading docks
CFM: 3,200
Volts: 230/460
Phase: 3
Horsepower (hp) 3/4
Amps: 2.5
Watts: 827
RPM: 1,075
Air Throw (ft): 60
Hertz (hZ): 60
Speeds: 1
Motor Type: Totally Enclosed Air Over (TEAO)
Constructed Material: Steel
Non-Oscillating: Yes
Wall Mount: Yes
Mount Location: Wall or Column
Optional: LED Dock Light - Mounts to the side of the fan - NOT INCLUDED (Please Inquire)
Dimensions (L x W x D x H): 25-1/2" x 16" x 25-1/2" x 16"
Weight (lbs): 95
