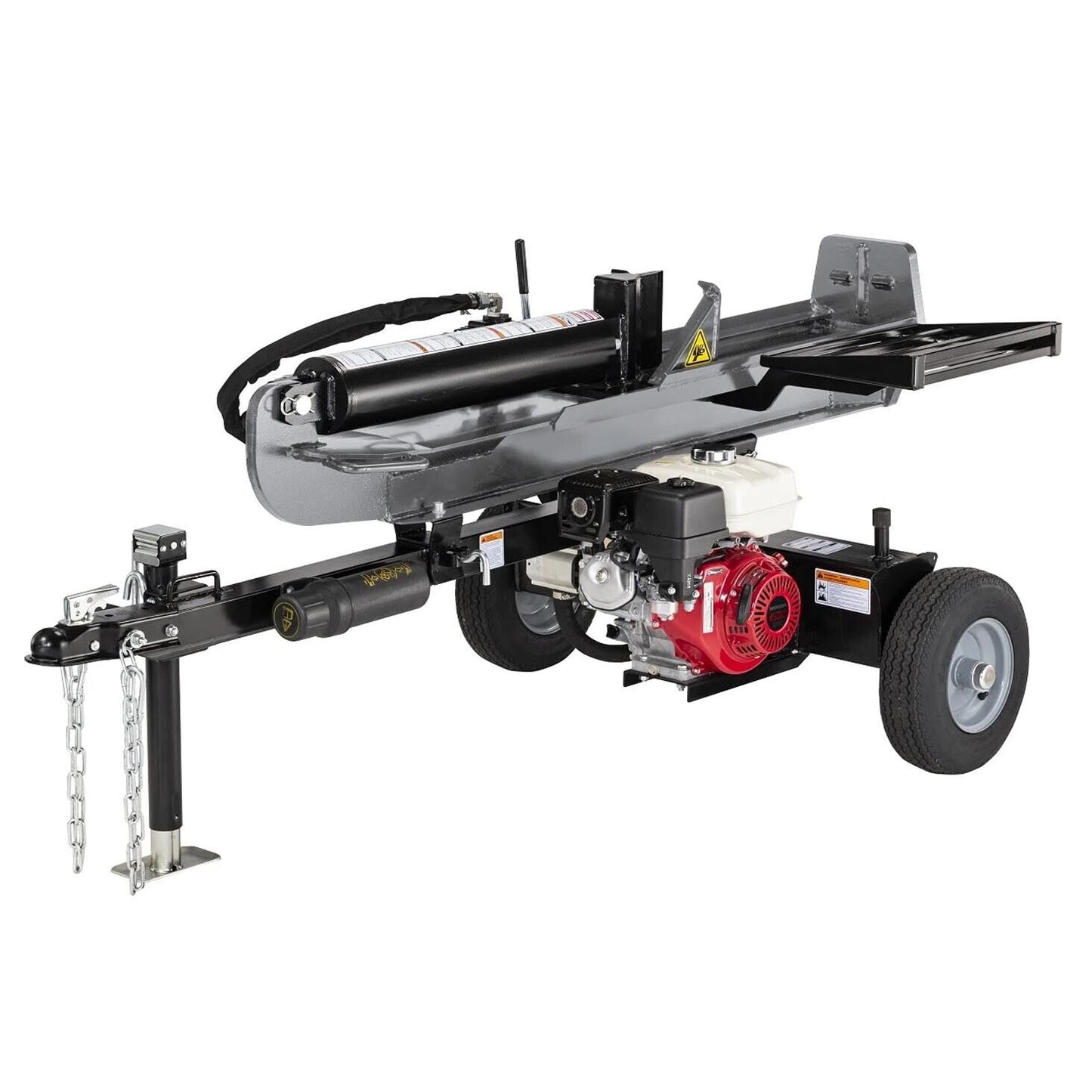

Log Splitter - Horizontal & Vertical - 35 Ton - 70,000 lbs - Honda 270cc - 16GPM

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT1035

Condition: New

Description & Specification:

Operates in horizontal and vertical positions for small and large logs.

Horizontal position handles smaller logs at waist height

Can be towed on highways up to 45 mph

2" ball coupler for towing (Ball hitch NOT included)

Vertical position handles larger logs by allowing the operating to roll the log into place for splitting

Comes with jack stands and log cradles

Application: Log Splitting

Position: Horizontal and Vertical

Maximum Log Handling (in): 25-1/2"

Engine Type: Honda GX

Engine Start: Recoil

Engine Cycle: 4

Engine CC: 270

Engine Fuel Tank Size (Gallons): 1.4

Engine Cylinder(s): 1

Hydraulic Auto Return: Yes

Hydraulic Filter: Yes

Hydraulic Oil: NOT INCLUDED

Hydraulic Reservoir (Gallons): 6.6

Pump PSI: 3,688

Pump Stage: 2

Pump GPM: 16-1/2

Cylinder Diameter (in): 5"

Cylinder Length (in): 24"

Cylinder Time (Seconds): 12.7

Wedge Construction: Cast Steel

Wedge Size (in): 8

Wedge Type: 2 Way

Towable: Yes - Up to 45 Mph

Tire Size (in): 4-1/2" x 16"

Dimensions (L x W x H): 71" x 48.4" x 30.5"

Weight (lbs): 580
