Pacific Tundra
Oil Dispensing System 4.8 GPM 115 Volts 1 HP - 1,700 RPM - Drain - Oil Change
Oil Dispensing System 4.8 GPM 115 Volts 1 HP - 1,700 RPM - Drain - Oil Change
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT 20108
Condition: New
Description: Oil Dispensing System 4.8 GPM 115 Volts 1 HP - 1,700 RPM - Drain - Oil Change

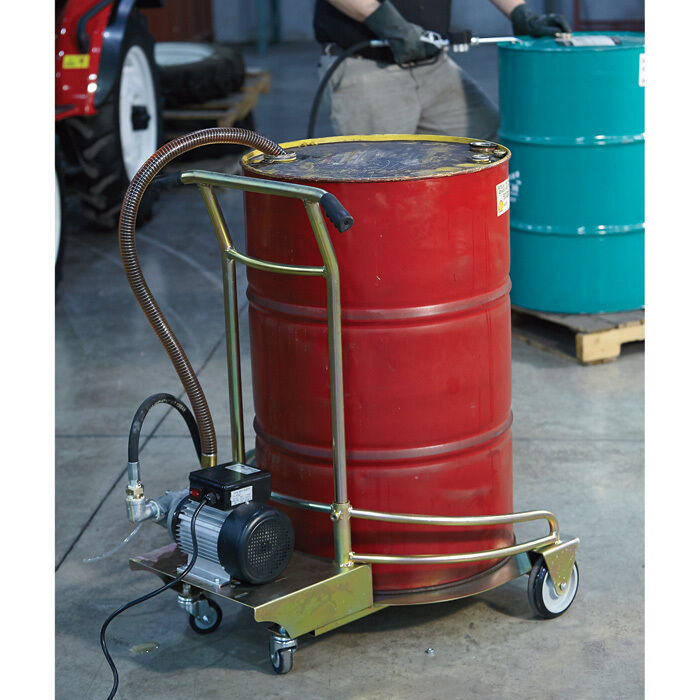

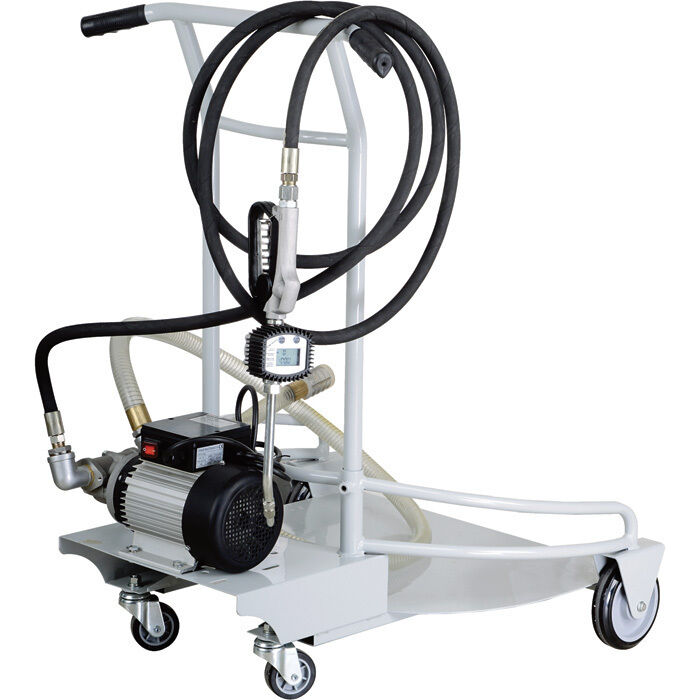

Features: Mobile Oil Dispensing Unit with self-priming pump is ideal for pumping oils and lubricants from a drum anywhere in your shop. Die-cast aluminum pump body with integrated bypass, internal sintered steel gears and relief valve device. Sturdy cart supports a standard 55 gallon drum (up to 484 lbs.) and includes a 1/2" x 13' delivery hose with digital oil control valve and manual nozzle. Drum not included.
IP55 protection class 115V motor
175 PSI max. pressure
Oil viscosity up to 10,000 SUS
6 1/2ft. suction hose with filter
Rolls on 3in. rear swivel casters and 6in. front wheels
Included: (1) Oil pump (1) Oil control valve (1) Delivery hose (1) Suction hose (1) Trolley
Description & Specification:
Horsepower: 1
Voltage: 115
Watts: 750
Amps: 6.25
Speed (RPM): 1,700
Flow (GPM): 4.8
Max. Total Head (ft.): 200
Max. Suction Lift (ft.): 6 1/2
Inlet Port (in.): 1/2
Outlet Port (in.): 1/2
Discharge (ft.): 194
Duty Cycle: 30 minutes
Self-Priming: Yes
Bypass Valve: Yes
Seal Type: IP55
Nozzle Type: Manual
Hose (in. x ft.): 1/2 x 13
Dimensions L x W x H (inches): 37 x 31 x 41 1/4
Ship Weight: 110.2 lbs
