Pacific Tundra

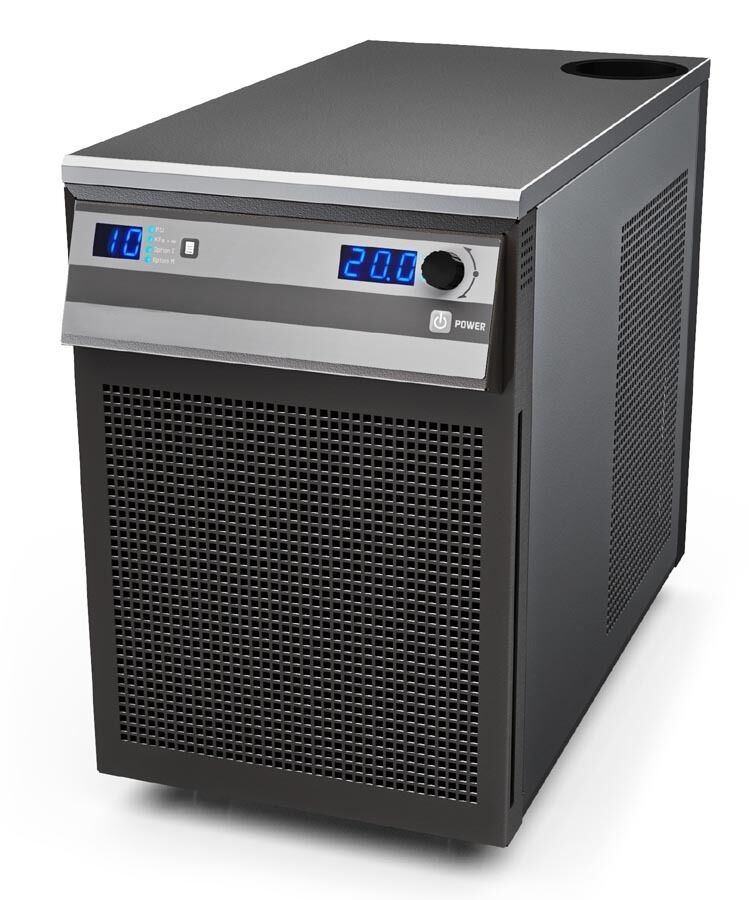

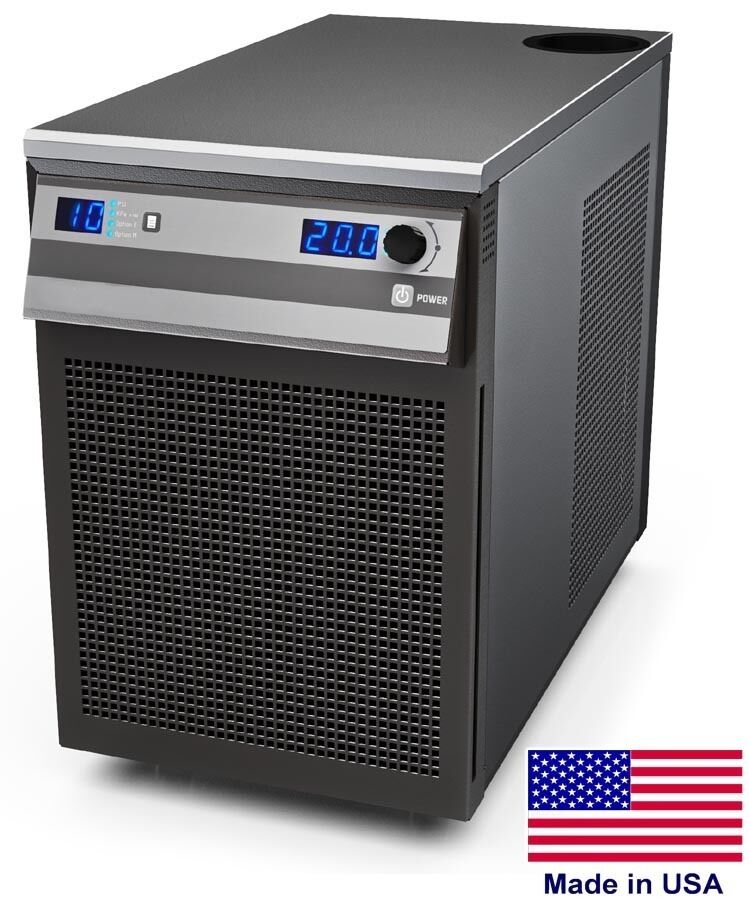

Portable Chiller - Turbine Pump - 3/4 HP - 230 Volts - 3.5 GPM - Heat Removal

Portable Chiller - Turbine Pump - 3/4 HP - 230 Volts - 3.5 GPM - Heat Removal

Regular price $12,196.68
Regular price Sale price $12,196.68
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PTWBB652657

Condition: New

Description: Portable Chiller - Turbine Pump - 3/4 HP - 230 Volts - 3.5 GPM - Heat Removal

Features: Designed for many common heat removal applications, such as laser etching, AA furnaces, ICP, rotary evaporators, vacuum systems, reaction vessels, plasma etching, and condenser cooling. Quiet and environmentally friendly. Made in the USA.



Description & Specification:

Large dual displays

Cooling at ambient temperatures as high as 35°C

Adjustable temperature

Pressure and flow rate alarms

LENGTH INCHES: 27 5/8

WIDTH INCHES: 14 1/2

HEIGHT INCHES: 22 5/8

LIQUID PIPE SIZE INCHES: 1/2

SUCTION PIPE SIZE INCHES: 1/2

COLOR FINISH: Dark Gray / Silver

CONSTRUCTION: Stainless Steel, Brass, Bronze, Nylon, Rubber, PTFE, PET

MAXIMUM PRESSURE PSI: 100

REFRIGERANT: R134a

MINIMUM TEMPERATURE °F: 14

MAXIMUM TEMPERATURE °F: 104

TEMPERATURE STABILITY °F: ±0.2

VOLTAGE: 208/230

WATTS COOLING AT 20°C: 2,300

HORSEPOWER: 3/4

TANK CAPACITY GALLONS: 1.1

MAXIMUM FLOW GPM: 3.5

LIMITED WARRANTY YEARS: 2

APPLICATION: Commercial

WEIGHT LBS: 197
