Pacific Tundra

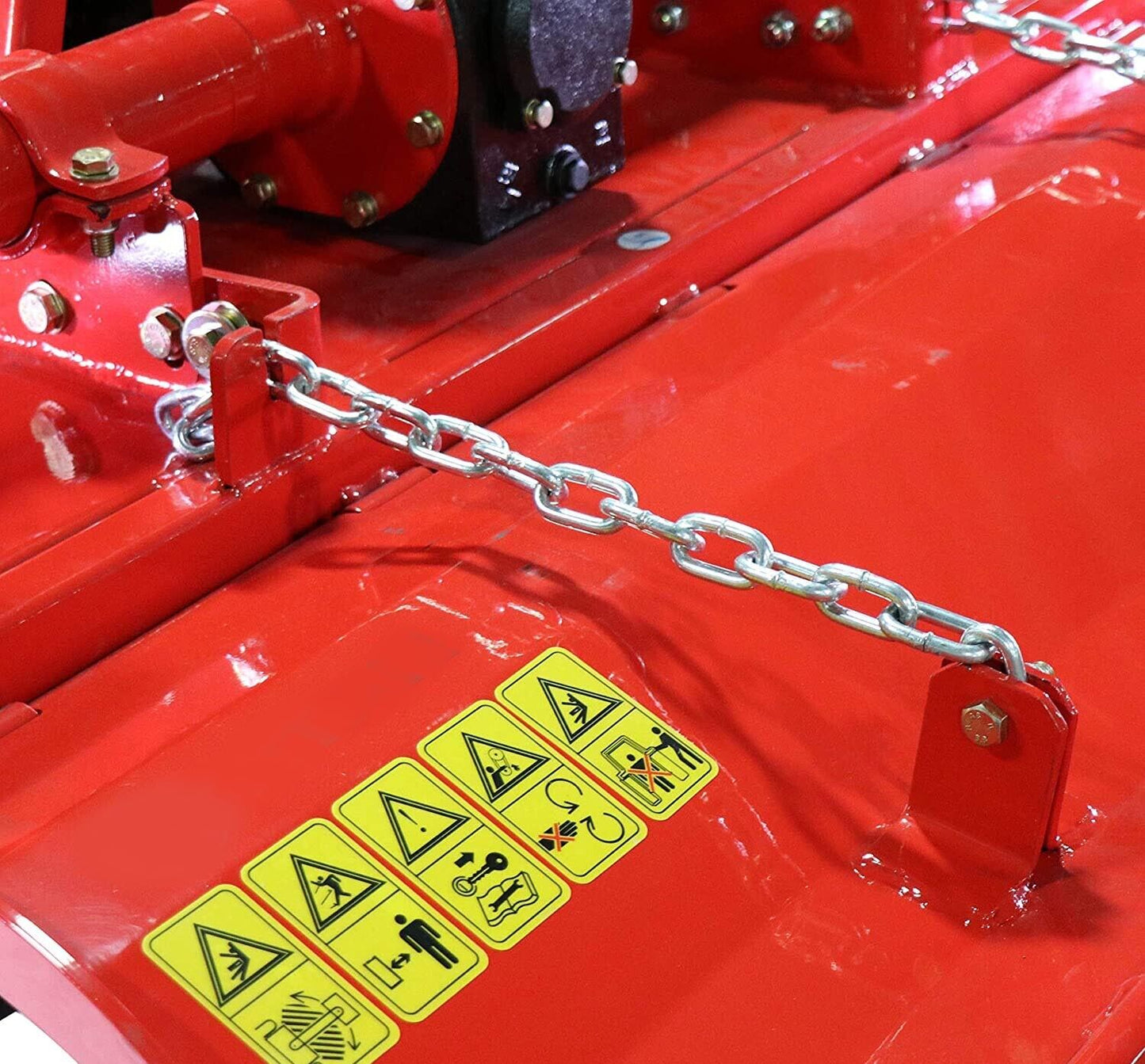

Rotary Tiller 5 ft - Gear Driven / PTO - 36 Tines - 3 PT - CAT 1 - 18 to 40 HP

Rotary Tiller 5 ft - Gear Driven / PTO - 36 Tines - 3 PT - CAT 1 - 18 to 40 HP

Regular price $5,029.92
Regular price Sale price $5,029.92
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number: PT932

Condition: New

Description: Rotary Tiller 5 ft - Gear Driven / PTO - 36 Tines - 3 PT - CAT 1 - 18 to 40 HP

Features: Our professional gear driven rotary tillers are ideal for preparation of seedbeds, renovation of pastures, orchards, vineyards and mulching-in cover crops and stubble. Designed for tractors up to 40 HP - 60" cutting width - 540 RPM commercial duty gearbox - Five adjustable ski height settings.



THIS LINE OF COMMERCIAL TILLERS IS AVAILABLE IN FOLLOWING CONFIGURATIONS:

4ft and 6ft Tilling Width

Please Note: These units are built to order. Please allow 5 to 8 Business Days for manufacturing and shipping



Description & Specification:

28 oz tines are manufactured for durability

Five adjustable ski height setting

PTO shaft and bottom link pins included

Operating Width (in): 60"

Tilling Depth (in): 2" to 8"

Tine Swing (in): 18"

Tine Thickness (in): 0.25"

Tine Weight (oz): 28

Number of Flanges: 6

Number of Tines Per Flange: 6

Number of Tines: 36

Drive System: Gear Driven / PTO with Shear Pin

Rotor Rotation: Forward

PTO RPM: 540

Rotor RPM: 214

Horsepower Required: 18 to 40 HP

Connection Type: CAT 1 / 3-PT Hitch

Optional: Replacement Blades - NOT INCLUDED - Please Inquire

Optional: Quick Hitch Bushing Kit - CAT 1 - NOT INCLUDED - Please Inquire

Dimensions (W x D x H):

70" x 27" x 41"

Total Weight: 673 lbs

Shipping Weight: 822 lbs
