Pacific Tundra

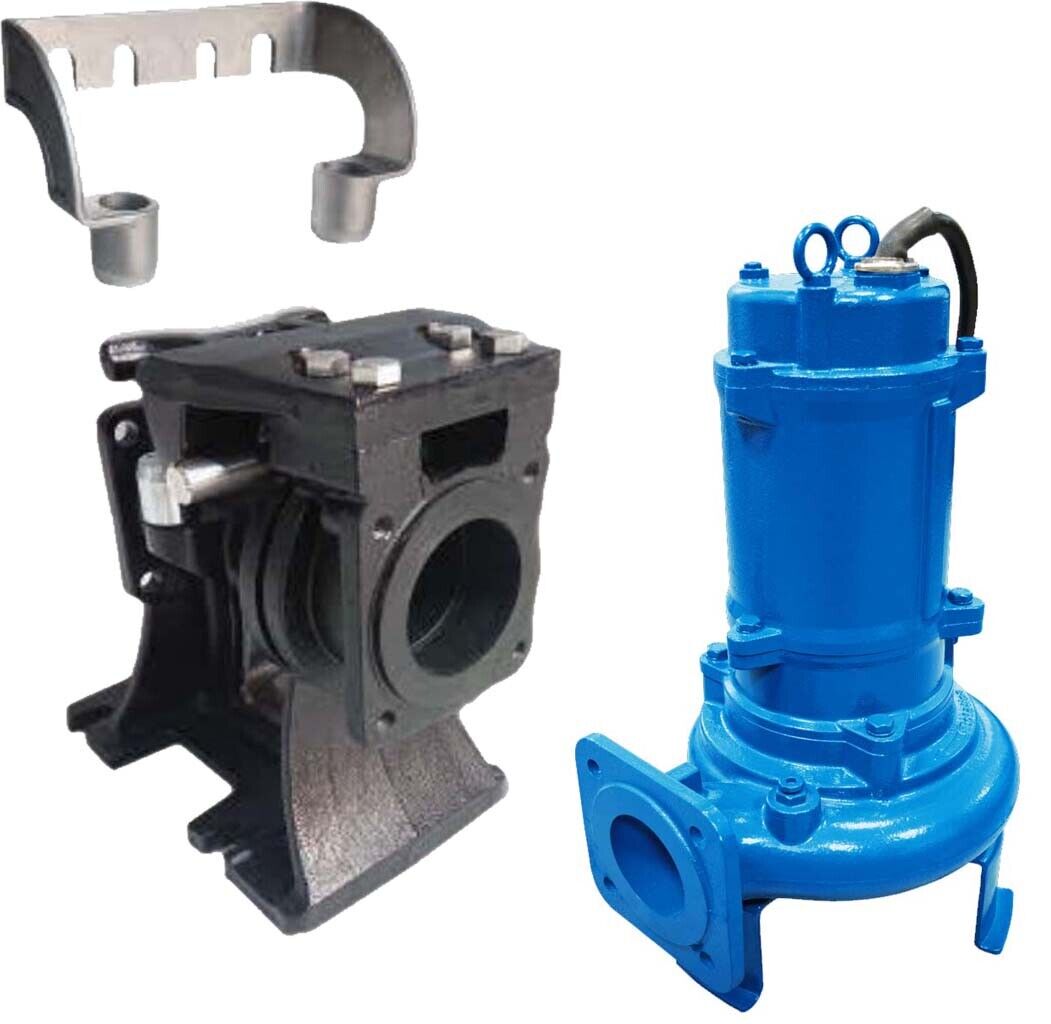

Shredder Pump & Slide Rail - Submersible - 4" Out - 320 GPM - 460 V - 3 Ph - 3HP

Shredder Pump & Slide Rail - Submersible - 4" Out - 320 GPM - 460 V - 3 Ph - 3HP

Regular price $5,920.77
Regular price Sale price $5,920.77
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT854

Condition: New

Description: Shredder Pump & Slide Rail - Submersible - 4" Out - 320 GPM - 460 Volts - 3 Phase - 3 HP

Description & Specification:

The slide rail is designed for wet wells, tanks, or lift stations.

Slide rail allows for servicing and reinserting the pump without entering the pit or well to unbolt the pump flanges

Volts: 460

Phase: 3

HP: 3

Rated GPM: 320

RPM: 1,750

Rated Amps: 4.5

Port Discharge Size (in): 4"

Port Type: NPT

Total Maximum Static Head (ft): 48

Motor Casing: Cast Iron

Housing Material: Cast Iron

Impeller Type: Semi-Open

Impeller Material:

Carbide Tipped

Thermal Overload Protection: Yes

Cable Length (ft): 33

Optional: Discharge Hose - NOT Included - Please Inquire

Optional: Control Box - NOT Included - Please Inquire

Slide Rail Flange Compatibility (in): 4"

Dimensions (L x W x H): 25-3/10" x 14-3/10"

Weight (lbs): 165

Shipping Weight (lbs): 205

Warranty: 1 Year
