Pacific Tundra

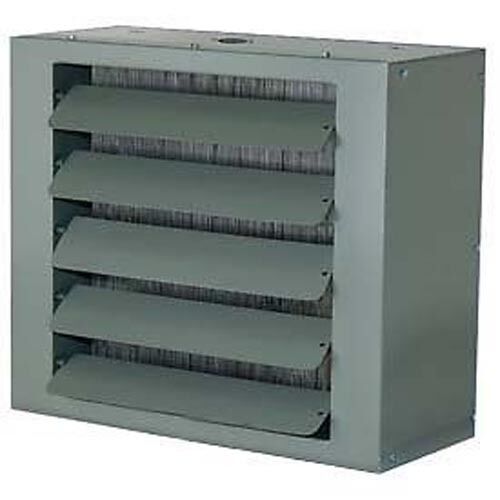

Steam or Hot Water Unit Heater - 86,000 BTU - 115 Volts - Commercial Duty

Steam or Hot Water Unit Heater - 86,000 BTU - 115 Volts - Commercial Duty

$1,749.19
$1,749.19
Sale Sold out
start_elivehelp_btncode
end_elivehelp_btncode

FREE SHIPPING OFFER

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number:



PTWG246448



Condition:



New



Description:


Steam or Hot Water Unit Heater - 86,000 BTU - 115 Volts





 Features:



Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/8 HP motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections.



Must be installed by a licensed contractor.



Contact Us:



Email: eBay mail or our customer service email





See similar items in our eBay Store

Note: This item is built to order
and will ship within 6 business days





Description & Specification:

LENGTH INCHES:  21-1/2

HEIGHT INCHES:  20-7/16

WIDTH INCHES:  16-1/2

TYPE:  Horizontal

CONSTRUCTION:  Steel

COLOR FINISH:  Gray

ASSEMBLY:  Assembly

WEIGHT LBS:  52

HORSEPOWER:  1/8

CONNECTION SIZE INCHES:  1-1/4

INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR:  86,000

OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR:  60,200

FINAL AIR TEMPERATURE °F (STEAM):  118

FINAL AIR TEMPERATURE °F (HOT WATER):  101

FAN DIAMETER INCHES:  14

HEAT THROW FEET:  31

ENTERING AIRFLOW CFM:  1,340

APPROVAL:  CSA US Listed

VOLTS:  115

WATER FLOW (GPM):  6.3

MAXIMUM MOUNTING HEIGHT FEET:  15
