Pacific Tundra

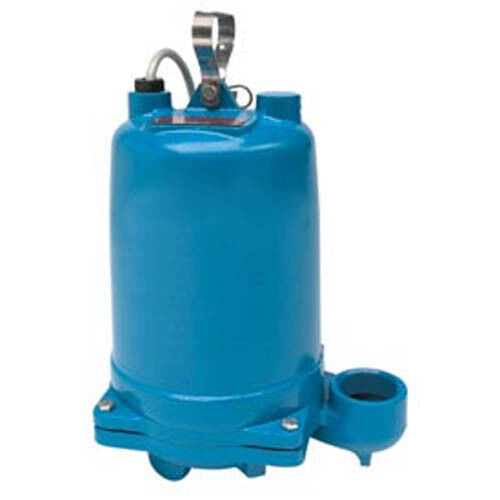

Submersible Effluent Pump - 1 Hp - 1 Ph - 3500 RPM - 230 V - 140 GPM - 2" Port

Submersible Effluent Pump - 1 Hp - 1 Ph - 3500 RPM - 230 V - 140 GPM - 2" Port

Regular price $3,151.08
Regular price Sale price $3,151.08
Sale Sold out
start_elivehelp_btncode
end_elivehelp_btncode



FREE SHIPPING OFFER

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number:



PTWBB196453



Condition:



 New



Description:



Submersible Effluent Pump - 1 Hp - 1 Ph - 3500 RPM - 230 Volts - 140 GPM - 2" Port



Features:



This effluent pump (liquid waste or sewage discharged) is constructed of cast iron, while the featuring a volute casing, and stainless steel shaft. This unit can handle solids up to 3/4" (in). A 2" NPT discharge allowing for maximum efficiency. Partial open and non-clog cast iron impeller. Impeller has pump-out vanes for seal protection and balanced for smooth operation. Includes stainless steel fasteners. Capable of running dry without damage to any components. Motor is fully protected and submerged in commercial-duty turbine oil for lubrication and heat transfer. Positive sealing against harsh contaminants and leakage is protected with the O-ring. Commercial-grade oil and water resistant 20' (ft) long power chord. Buy confidently knowing this is CSA listed.



Contact Us:


Phone (Toll Free):

Email: eBay mail or our customer service email





See similar items in our eBay Store

Please Note: This item is BUILT to order

Please allow 10 to 15 Business Days for manufacturing and shipping


Description & Specification:

LENGTH: 11 1/2" (in)

WIDTH: 8 1/2" (in)

HEIGHT: 16" (in)

DISCHARGE CONNECTION SIZE: 2" (in)

MAXIMUM DIAMETER SOLIDS: 3/4" (in)

CONSTRUCTION: Cast Iron

SHAFT SEAL CONSTRUCTION: Stainless Steel

IMPELLER MATERIAL: Cast Iron

ROTATIONS PER MINUTE: 3500

TEMPERATURE OF LIQUID PUMPED: 104 Continuous/140 Intermittent

VOLTAGE: 230

PHASE: 1

HERTZ: 60

AMPS: 12.5

HORSEPOWER: 1

GALLONS PER MINUTE: 140

SUCTION/DRAW HEAD: 77' (ft)

CORD LENGTH: 20 (ft)

DISCHARGE CONNECTION TYPE: NPT

SWITCH TYPE: Manual
