Pacific Tundra
Submersible GRINDER PUMP - 2.5" - 105 GPM - 230V- 1 Ph - 148ft Head - Cast Iron
Submersible GRINDER PUMP - 2.5" - 105 GPM - 230V- 1 Ph - 148ft Head - Cast Iron
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT850
Condition: New
Description: Submersible GRINDER PUMP - 2.5" - 105 GPM - 230 Volts - 1 Phase - 148 ft Head - Cast Iron
Description & Specification:
Volts: 230
Phase: Single
HP: 3
Rated GPM: 105
PSI: 64
RPM: 3,500
Starting Amps: 117
Rated Amps: 39
Port Discharge Size (in): 2.5"
Port Type: Flange
Total Maximum Static Head (ft): 148

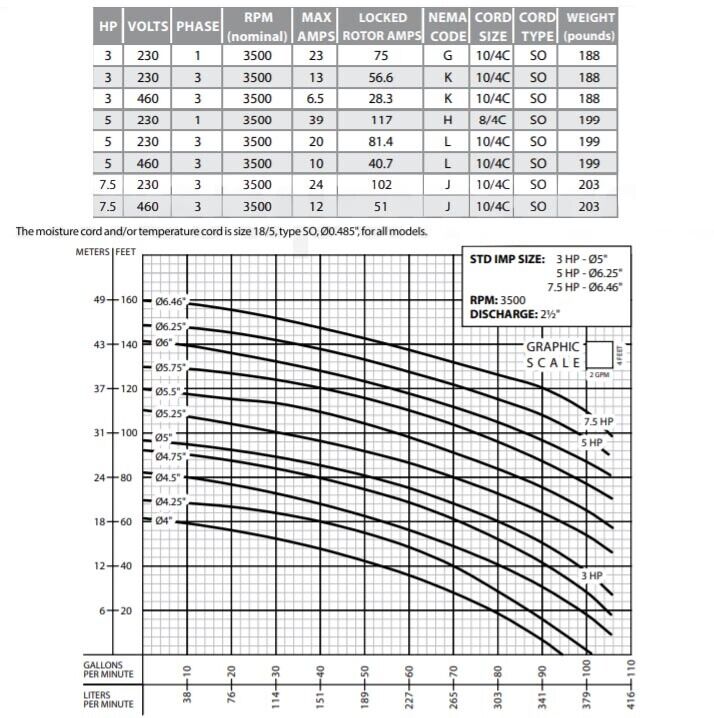

NEMA Code: H (Please reference the listing photos for curve chart)
Motor Casing: Cast Iron
Housing Material: Cast Iron
Impeller Size (in): 6-1/4”
Impeller Type: Vortex
Impeller Vanes: 10
Impeller Material: Cast Iron
Seal Plate Material: Cast Iron
Priming: Self-Priming
Thermal Overload Protection: Yes
Solid Handling: Yes
Cable Length (ft): 25
Cable Material: Neoprene
Optional: Discharge Hose - NOT Included - Please Inquire
Optional: Control Box - NOT Included - Please Inquire
Optional: Float Switch - NOT Included - Please Inquire
Optional: Submersible Pump Slide Rail Coupling System – Designed for our 2" & 2.5" Grinder Pumps - NOT Included - Please Inquire
Optional: Grinder Pump Stand - NOT Included - Please Inquire
Dimensions (L x W x H): 29-3/8" x 10-5/8" x 9-1/8"
Weight (lbs): 199
Shipping Weight (lbs): 240
Warranty: 1 Year
