Pacific Tundra

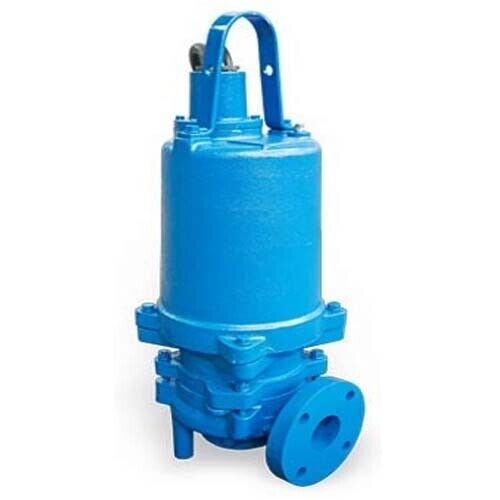

Submersible GRINDER Pump - 2.5" - 106 GPM - 230 V - 3 Ph - 69 PSI - 160 ft Head

Submersible GRINDER Pump - 2.5" - 106 GPM - 230 V - 3 Ph - 69 PSI - 160 ft Head

Regular price $8,694.25
Regular price Sale price $8,694.25
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT856

Condition: New

Description: Submersible GRINDER Pump - 2.5" - 106 GPM - 230 Volts - 3 Phase - 69 PSI - 160 ft Head

Description & Specification:

Volts: 230

Phase: 3

HP: 7.5

Rated GPM: 106

PSI: 69

RPM: 3,500

Starting Amps: 102

Rated Amps: 24

Port Discharge Size (in): 2.5"

Port Type: Flange

Total Maximum Static Head (ft): 160

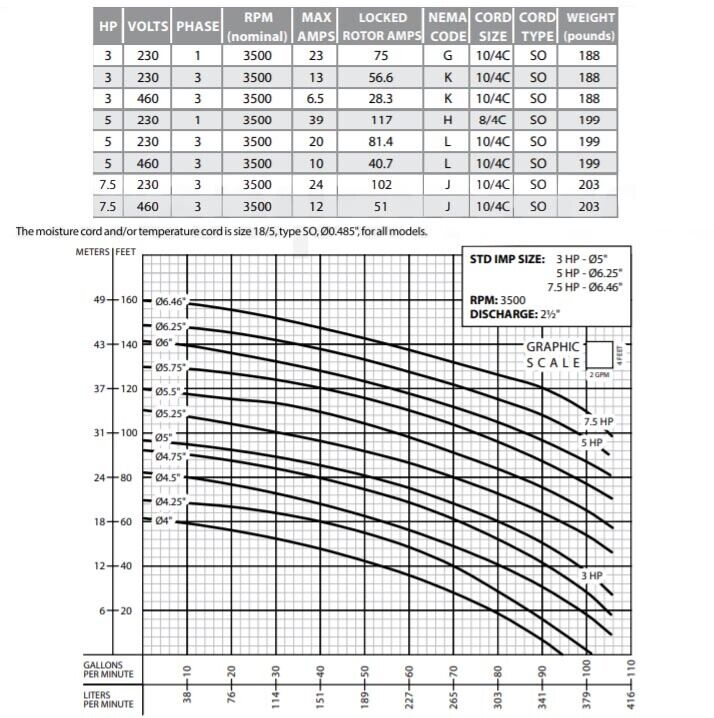

NEMA Code: J (Please reference the listing photos for curve chart)

Motor Casing: Cast Iron

Housing Material: Cast Iron

Impeller Size (in):

6.46"

Impeller Type: Vortex

Impeller Vanes: 10

Impeller Material: Cast Iron

Seal Plate Material: Cast Iron

Priming: Self-Priming

Thermal Overload Protection: Yes

Solid Handling: Yes

Cable Length (ft): 25

Cable Material: Neoprene

Optional: Discharge Hose - NOT Included - Please Inquire

Optional: Control Box - NOT Included - Please Inquire

Optional: Float Switch - NOT Included - Please Inquire

Optional: Submersible Pump Slide Rail Coupling System – Designed for our 2" & 2.5" Grinder Pumps - NOT Included - Please Inquire

Optional: Grinder Pump Stand - NOT Included - Please Inquire

Dimensions (L x W x H): 29-3/8" x 10-5/8" x 9-1/8"

Weight (lbs): 203

Shipping Weight (lbs): 243

Warranty: 1 Year
