Pacific Tundra

Submersible GRINDER PUMP & Slide Rail - 2.5" - 105 GPM - 230V - 1Ph - 96 ft Head

Submersible GRINDER PUMP & Slide Rail - 2.5" - 105 GPM - 230V - 1Ph - 96 ft Head

Regular price $9,032.93
Regular price Sale price $9,032.93
Sale Sold out

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT853

Condition: New

Description: Submersible GRINDER PUMP & Slide Rail - 2.5" - 105 GPM - 230V - 1Ph - 96 ft Head

Description & Specification:

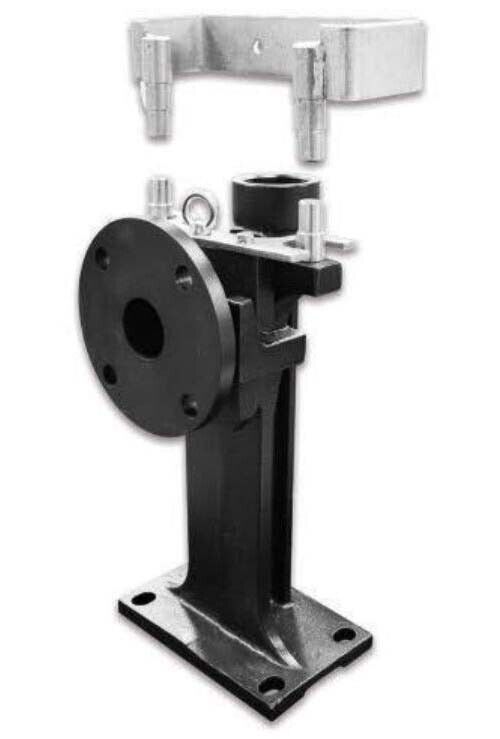

The slide rail is designed for wet wells, tanks, or lift stations.

Slide rail allows for servicing and reinserting the pump without entering the pit or well to unbolt the pump flanges

Volts: 230

Phase: Single

HP: 5

Rated GPM: 106

PSI: 42

RPM: 3,500

Starting Amps: 75

Rated Amps: 23

Port Discharge Size (in): 2.5"

Port Type: Flange

Total Maximum Static Head (ft): 96

NEMA Code: H (Please reference the listing photos for curve chart)

Motor Casing: Cast Iron

Housing Material: Cast Iron

Impeller Size (in): 5”

Impeller Type: Vortex

Impeller Vanes: 10

Impeller Material: Cast Iron

Seal Plate Material: Cast Iron

Priming: Self-Priming

Thermal Overload Protection: Yes

Solid Handling: Yes

Cable Length (ft): 25

Cable Material: Neoprene

Optional: Discharge Hose - NOT Included - Please Inquire

Optional: Control Box - NOT Included - Please Inquire

Optional: Float Switch - NOT Included - Please Inquire

Optional: Grinder Pump Stand - NOT Included - Please Inquire

Submerge Minimum: 6" Above Pump Height

Sumberge Maximum: 60 ft Depth from surface of water

Slide Rail Flange Compatibility (in): 2" and 2.5"

Pump Dimensions (L x W x H): 30" x 11" x 10"

Weight (lbs): 199

Shipping Weight (lbs): 240

Warranty: 1 Year
