Pacific Tundra
Submersible GRINDER PUMP & Slide Rail- 2.5" - 106 GPM - 230V - 3 Ph - 160ft Head
Submersible GRINDER PUMP & Slide Rail- 2.5" - 106 GPM - 230V - 3 Ph - 160ft Head
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT858
Condition: New
Description: Submersible GRINDER PUMP & Slide Rail- 2.5" - 106 GPM - 230 Volts - 3 Phase - 160 ft Head
Description & Specification:
The slide rail is designed for wet wells, tanks, or lift stations.
Slide rail allows for servicing and reinserting the pump without entering the pit or well to unbolt the pump flanges
Volts: 230
Phase: 3
HP: 7.5
Rated GPM: 106
PSI: 69
RPM: 3,500
Starting Amps: 102
Rated Amps: 24
Port Discharge Size (in): 2.5"
Port Type: Flange

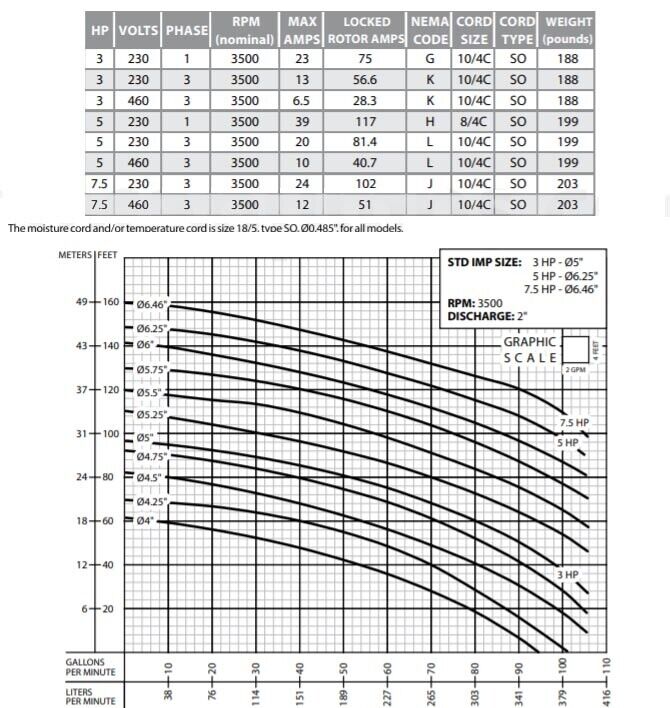

Total Maximum Static Head (ft): 160 (Please reference curve chart)
NEMA Code: J (Please reference the listing photos for curve chart)
Motor Casing: Cast Iron
Housing Material: Cast Iron
Impeller Size (in): 6.46"
Impeller Type: Vortex
Impeller Vanes: 10
Impeller Material: Cast Iron
Seal Plate Material: Cast Iron
Priming: Self-Priming
Thermal Overload Protection: Yes
Solid Handling: Yes
Cable Length (ft): 25
Cable Material: Neoprene
Optional: Discharge Hose - NOT Included - Please Inquire
Optional: Control Box - NOT Included - Please Inquire
Optional: Float Switch - NOT Included - Please Inquire
Optional: Grinder Pump Stand - NOT Included - Please Inquire
Slide Rail Flange Compatibility (in): 2" and 2.5"
Dimensions (L x W x H): 29-3/8" x 10-5/8" x 9-1/8"
Weight (lbs): 203
Shipping Weight (lbs): 243
Warranty: 1 Year
