TUBE AXIAL DUCT FAN - Explosion Proof - Direct Drive - 42" - 230/460V 24,500 CFM

TUBE AXIAL DUCT FAN - Explosion Proof - Direct Drive - 42" - 230/460V 24,500 CFM

$9,085.31
$9,085.31
Sale Sold out
start_elivehelp_btncode
end_elivehelp_btncode



FREE SHIPPING OFFER

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.



Model Number:



PTDFL4233EXP



Condition:



New



Description:

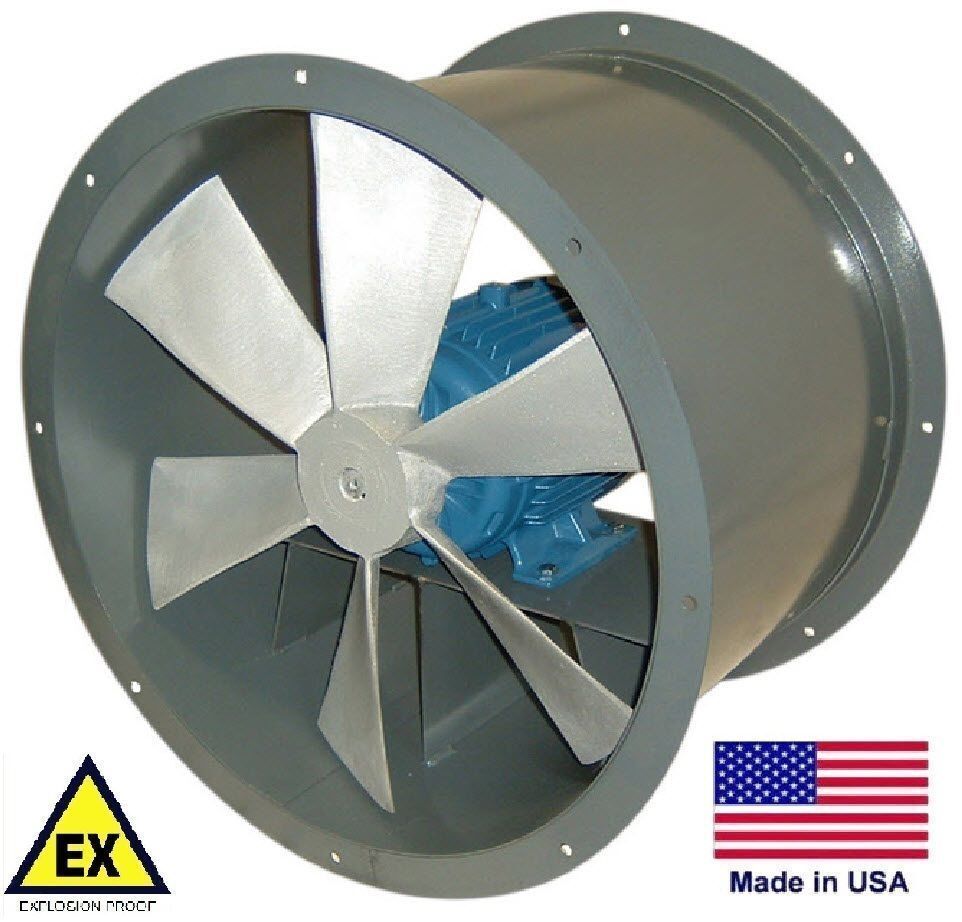

TUBE AXIAL DUCT FAN - Explosion Proof - Direct Drive - 42" - 230/460V 24,500 CFM





 Features:



42" Blade Diameter - 230/460 Volt - 3 Phase - 3 Hp - 24,500 CFM - Direct Drive - 1140 RPM - Hazardous Location/Explosion Proof Configuration Includes Single Speed Explosion Proof Motor and Aluminum Spark-Resistant Fan Blades - Heavy Duty All-Welded Construction - Optional Flanges, Mounting Feet and Belt Driven Configuration Available (see Optional Items below) - Made in the USA





Contact Us:



Phone (Toll Free): 1-

Email: eBay mail or our customer service email





See similar items in our eBay Store

THIS LINE OF INDUSTRIAL EXPLOSION PROOF TUBE AXIAL DUCT FANS IS AVAILABLE IN FOLLOWING CONFIGURATIONS:

Sizes range between 12" to 48"

Motors from 1/4 to 5 Hp

Voltage Range: 115/230V, 230/460V

Phase: 1 & 3

CFM Ranges from 1,180 to 28,970

All sizes of this series of tube axial duct fans are available in standard (non-explosion proof) configurations (please inquire Toll Free at )




Description & Specification:

  • Industrial/Commercial Heavy Duty Explosion Proof/Hazardous Location Tube Axial Duct Fan
  • Our line of Industrial Explosion Proof/Hazardous Location Tube Axial Duct Fans provide continuous duty operation capabilities
  • Recommeded for use in manufacturing facilities, assembly plants, automotive industries and similar settings to remove fumes, dust and smoke and where air movement is needed to remove air contaminated with materials classified as hazardous or have explosion potential and provide fresh air flow
  • Features an industrial continuous duty explosion proof motor and cast aluminum spark-resistant blades.  Note: wiring must be in accordance with local, state and national codes and be performed by a qualified electrician
  • Designed for use in dry environments up to 104ºF (we also offer high temperature configurations for environments greater than 104ºF - please inquire Toll Free at )
  • Fan Type: Tube Axial Duct - Explosion Proof/Hazardous Location - Industrial/Commercial
  • Blade Diameter: 42"
  • Drive System: Direct
  • Horsepower: 3 Hp
  • Motor Type: Explosion Proof/Hazardous Location
  • Voltage: 230/460V
  • Phase: 3
  • Amp Draw @ 230V: 9.2
  • Amp Draw @ 460V: 4.6
  • Motor Speeds: 1
  • CFM: 24,500
  • Power Cord: N/A - This is a hardwire fan.  We recommend that you contract a licensed and insured electrician to run power to this fan
  • Optional Item: Model PTMF - Companion/Mounting Flange (please inquire Toll Free at )
  • Optional Item: Model PTHSL - Horizontal Support Legs (please inquire Toll Free at )
  • Optional Item: Model PTHVSB - Horizontal and Vertical Support Brackets (please inquire Toll Free at )
  • Optional Item: Model PTIG - Inlet Guard (please inquire Toll Free at )
  • Optional Item: Model PTOG - Outlet Guard (please inquire Toll Free at )
  • Optional Item: Model PTID - Inspection/Service Door (please inquire Toll Free at )

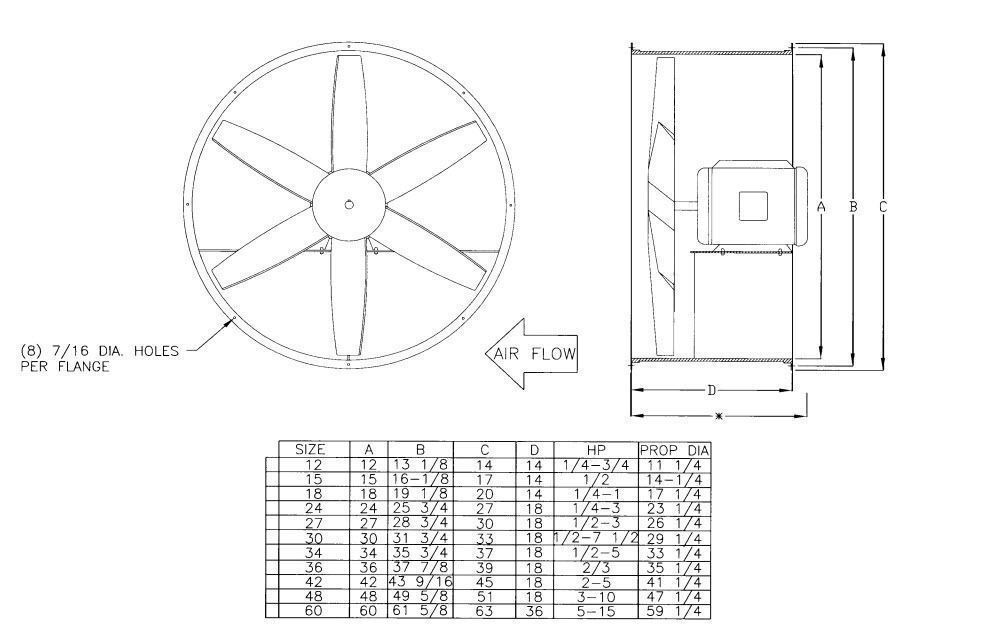

  • Overall Dimensions: 45" H x 45" W x 18" D
  • Please allow 2 weeks for delivery - we build our fans to order
  • Ship Weight: 431 Lbs
  • 1 Year Warranty (Includes Parts & Labor)
  • Made in the U.S.A.
