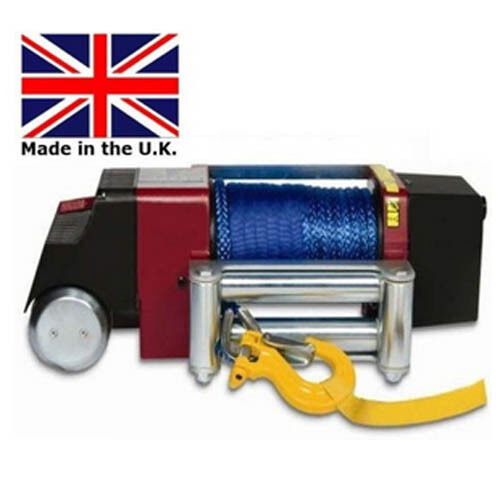

WINCH & 80 Ft Rope - 12 Volt DC - 4.2 Hp - 10,000 Lb Cap / 5 Ton Pull

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT2404BB

Condition: New

Description: Commercial WINCH & 80 Ft Rope - 12 Volt DC - 4.2 Hp - 10,000 Lb Cap / 5 Ton Pull

Description & Specification:

Commercial Duty 10,000 Lb Capacity 12VDC Winch with Roller Fairlead

Our line of commercial duty winches provide reliable, powerful performance for off-road and utility vehicle applications

Features a 4.2 Hp sealed series wound motor, 3/8" x 80 Ft synthetic rope, commercial duty roller fairlead and automatic 100% load holding brake

Winch Type: Vehicle Mounted - Commercial Duty

Power Requirement: 12 Volt DC

Motor Rating: 4.2 Hp

Rated Line Pull: 10,000 Lbs (5 Tons)

Gear Train: Worm Gear

Gear Reduction Ratio: 294:1

Braking Mechanism: Automatic - 100% Load Holding

Drum Size: 3" diameter x 9" length

Synthetic Rope Included: 3/8" x 80 Ft

Fairlead: Roller

Remote Control (Included): Hand-Held - 15 Ft Cable - Sealed

Solenoid: Sealed - S3 Sealed - Submersible - Removable for remote mounting - circuit breaker protected

Clutch: Free-Spooling - Lever Control

Hook: Clevis Pinned Latch

Mounting Bolt Pattern: 10" x 4.5"

Line Pull Speed: No Load - 22.6 FPM - 10,000 Lb Load: 1.5 FPM

Questions?  Call our Customer Service Department Toll Free 888-257-8607

Overall Dimensions: 24.7" L x 9.75" D x 8.9" H

Ship Weight: 95 Lbs

2 Year Warranty (Includes Parts & Labor)

Made in the England
