Pacific Tundra

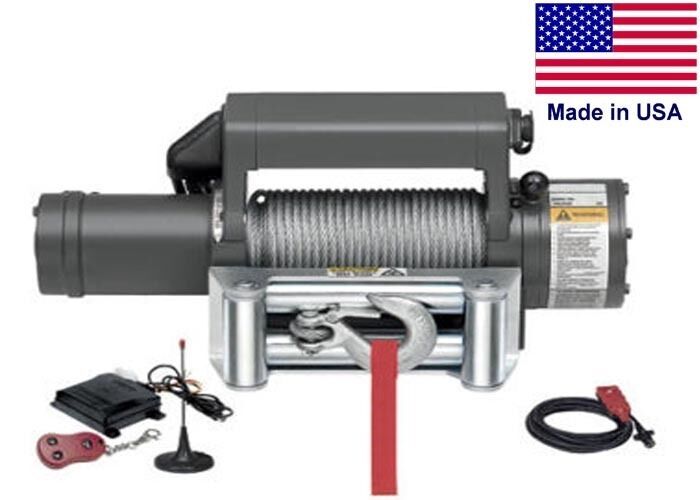

WINCH - Commercial - 12 Volt DC - 5.5 Hp - 9,500 Lb Cap - 90 Ft of 7/16" Cable
WINCH - Commercial - 12 Volt DC - 5.5 Hp - 9,500 Lb Cap - 90 Ft of 7/16" Cable
Couldn't load pickup availability
Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.
Model Number: PT144192
Condition: New
Description: WINCH - Commercial - 12 Volt DC - 5.5 Hp - 9,500 Lb Cap - 90 Ft of 7/16" Cable
Features: 12 Volt DC - 5.5 Hp - 9,500 Lb Pulling Capacity - 90 Ft of 7/16" Galvanized Aircraft Grade Cable - 4-Way Roller Fairlead - 12 Ft Wired and Wireless Remote Control - Made in the USA.
Description & Specification:
Commercial 9,500 Lb Capacity 12VDC Winch with 4-Way Roller Fairlead and 12 Ft Wire and Wireless Remote Control
Our line of commercial winches provide reliable, powerful performance for truck and utility vehicle applications
Features a 5.5 Hp motor, 90 Ft of 7/16" galvanized aircraft grade cable, heavy duty 4-way roller fairlead and automatic braking
Winch Type: Truck and Utility Vehicle Mounted - Commercial
Power Requirement: 12 Volt DC
Motor Rating: 5.5 Hp
Rated Line Pull: 9,500 Lbs (4.75 Ton)
Gear Train: 3 Stage Planetary
Gear Ratio: 138:1
Braking: Automatic
Cable Included: 90 Ft of 7/16" galvanized aircraft grade
Fairlead: 4-Way Roller
Control: 12 Ft Wired and Wireless Remote
Clutch: Free-Spooling - Spring-loaded, pull and rotate
Hook: Latched
Line Speed: No Load: 35.4 FPM / Full Load: 10.2 FPM
Optional Item: Model PT144121 - Winch Mounting Channel - 30" - Designed for use in most mounting applications. Rated for winches between 5,000 to 9,500 Lb capacities (please inquire Toll Free at )
Questions? Call our Customer Service Department Toll Free
Note: this commercial winch is built to order. Please allow 14 to 21 days for delivery
Overall Dimensions: 22.7" L x 6.2" D x 9.9" H
Ship Weight: 98 Lbs
2 Year Warranty (Includes Parts & Labor)
Made in the USA
