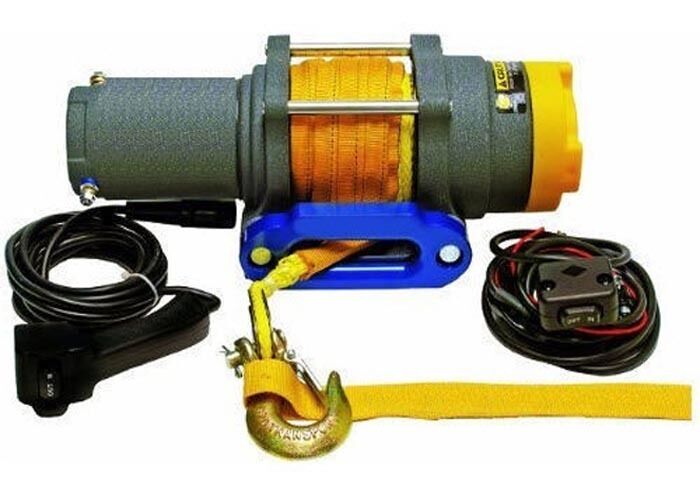

WINCH - Heavy Duty - 12 Volt DC - 1.3 Hp - 2,500 Lb Cap - 50 Ft Synthetic Rope

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT1125230

Condition: New

Description & Specification:

• Heavy Duty 2,500 Lb Capacity 12VDC Winch with Blue Anodized Aluminum Hawse Fairlead - Includes Heavy Duty Latched Hook with Thimble

• Our line of heavy duty winches provide reliable, powerful performance for off-road and utility vehicle applications

• Features a 1.3 Hp motor, 50 Ft of 3/16" synthetic rope, heavy duty blue anodized aluminum hawse fairlead and automatic 100% load holding brake

• Winch Type: ATV, UTV and Vehicle Mounted - Heavy Duty

• Power Requirement: 12 Volt DC

• Motor Rating: 1.3 Hp - Permanent Magnet

• Rated Line Pull: 2,500 Lbs (1 Ton)

• Gear Train: 3 Stage Planetary

• Gear Reduction Ratio: 140:1

• Braking: Automatic - 100% Load Holding

• Drum Size: 2" diameter x 3.2" length

• Rope Included: 3/16" x 50 Ft - Synthetic

• Fairlead: Blue Anodized Aluminum Hawse

• Remote Control (Included): Hand-Held - Sealed - 10 Ft Cable

• Solenoid: Sealed & Circuit Breaker Protected

• Clutch: Free-Spooling - Ergonomic Control

• Hook: Clevis Pin Latched

• Mounting Bolt Pattern: 3" x 6.66"

• Line Pull Speed: No Load - 25 FPM / at Full Load: 9.5 FPM

• Questions?  Call our Customer Service Department Toll Free

• Overall Dimensions: 13.2" L x 4.5" D x 4.8" H

• Ship Weight: 23.7 Lbs

• 2 Year Warranty
