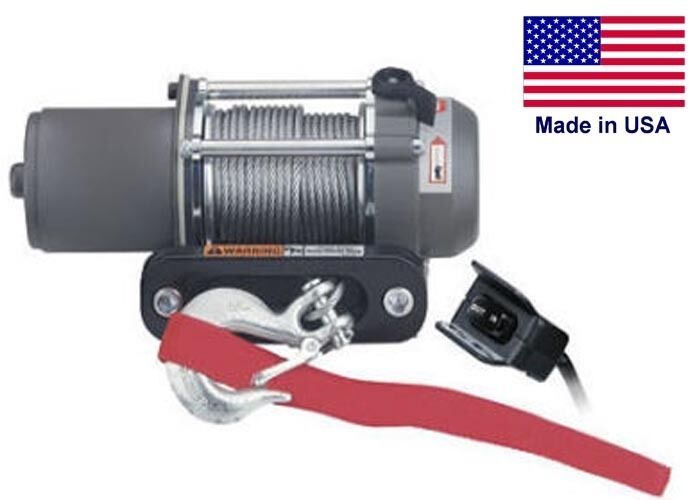

WINCH - Heavy Duty - 12 Volt DC - .4 Hp - 1500 Lb Cap - 40 Ft of 5/32" Synthetic

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT1424821

Condition: New

Description & Specification:

• Heavy Duty 1,500 Lb Capacity 12VDC Winch with Roller Fairlead and Handlebar Mounted Rocker Switch

• Our line of heavy duty winches provide reliable, powerful performance for off-road and utility vehicle applications

• Features a 0.4 Hp motor, 40 Ft of 5/32" synthetic rope, heavy duty roller fairlead and disc braking

• Winch Type: ATV, UTV and Vehicle Mounted - Heavy Duty

• Power Requirement: 12 Volt DC - permanent magnetic - sealed

• Motor Rating: 0.4 Hp

• Rated Line Pull: 1,500 Lbs (3/4 Ton)

• Gear Train: 3 Stage Planetary

• Gear Ratio: 103:1

• Braking: Mechanical - Disc

• Synthetic Rope Included: 40 Ft of 5/32"

• Fairlead: Roller

• Control: Rocker Switch - Handlebar Mounted

• Clutch: Free-Spooling - flip tab

• Hook: Latched

• Power Leads: 10 Gauge

• Drum Diameter: 1.5"

• Drum Length: 3"

• Line Speed: No Load - 15 FPM / Full Load: 5 FPM

• Includes mounting hardware

• Questions?  Call our Customer Service Department Toll Free 888-257-8067

• Overall Dimensions: 12" L x 8.1" D x 5.6" H

• Ship Weight: 17 Lbs

• 2 Year Warranty (Includes Parts & Labor)

• Made in the USA
