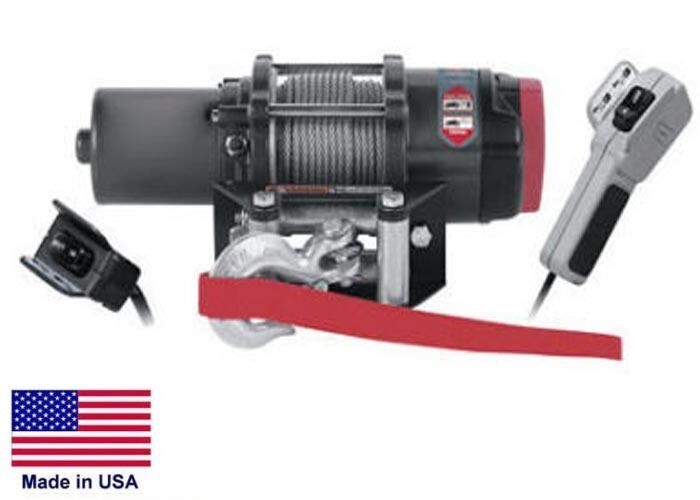

WINCH - Heavy Duty - 12 Volt DC - .9 Hp - 3,000 Lb Cap 50 Ft of 3/16" Wire Rope

Free Shipping within the Lower 48 United States. If you are located outside of the Lower 48 United States, please request a freight quote.

Model Number: PT142481

Condition: New

Description & Specification:

• Heavy Duty 3,000 Lb Capacity 12VDC Winch with Roller Fairlead, Handlebar Mounted Rocker Switch and Remote Control

• Our line of heavy duty winches provide reliable, powerful performance for off-road and utility vehicle applications

• Features a 0.9 Hp motor, 50 Ft of 3/16" aircraft grade wire rope, heavy duty roller fairlead and mechanical braking

• Winch Type: ATV, UTV and Vehicle Mounted - Heavy Duty

• Power Requirement: 12 Volt DC - permanent magnetic - sealed

• Motor Rating: 0.9 Hp

• Rated Line Pull: 3,000 Lbs (1.5 Ton)

• Gear Train: 3 Stage Planetary

• Gear Ratio: 154:1

• Braking: Mechanical - Disc

• Wire Rope Included: 50 Ft of 3/16" aircraft grade

• Fairlead: Roller

• Control: Rocker Switch - Handlebar Mounted and Remote Control

• Clutch: Free-Spooling - sliding pin and ring gear

• Hook: Latched

• Power Leads: 6 Gauge

• Drum Diameter: 2"

• Drum Length: 2.9"

• Includes mounting hardware

• Questions?  Call our Customer Service Department Toll Free

• Overall Dimensions: 16" L x 13.1" D x 6.4" H

• Ship Weight: 29.9 Lbs

• 2 Year Warranty (Includes Parts & Labor)

• Made in the USA
